Optix Spectrally Selective

LIFETIME LIMITED WARRANTY

• Available for Express Premium Architectural Window Films
• Lifetime limited - Residential / 12 year commercial
• Includes Product & Reinstallation Labor
• Australia-wide Warranty Service Dealer Network

Combining maximum visibility
with Extreme heat control

Crystal clear outlook
Without the harsh heat

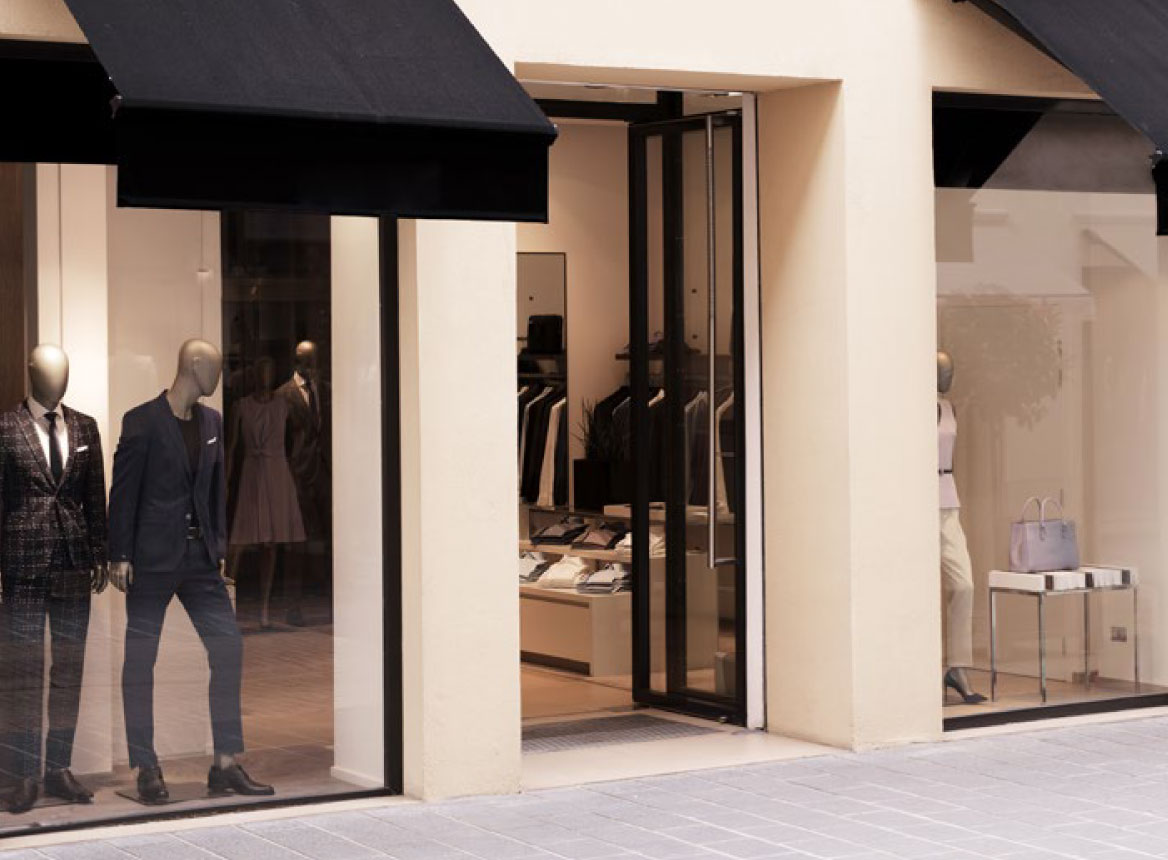

Display your products
minus the sun damage

The spectrally selective nano-ceramic technology utilised to manufacture the Optix range selectively filters high levels of heat producing infrared radiation whilst preserving crystal clear visibility during the day and night.

Constructed using coatings of precision nano ceramic particles Optix directly filters high amounts of infrared heat and ultraviolet light, with minimal reduction in natural light for clear visibility.
Optix’s low reflection corrosion free construction is the ideal choice for maintaining clear optics to landscapes both day and night, with the added advantage of supreme solar protection for interiors and retail stock. Optix Spectrally Selective by Express Window Films is available in a choice of optically clear graphite shades.

Optix Performance Specifications

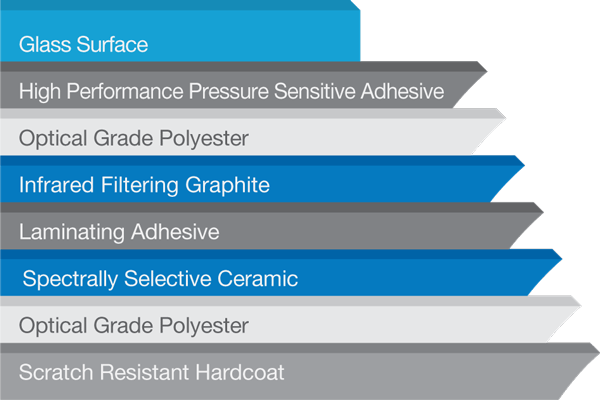

Optix Film Construction

Product Code	Optix 70	Optix 80	Optix 90
Heat Rejected %	50	42	30
Glare Reduction %	24	14	6
UV Protection %	99	99	99
Infrared Rejected %	90+	80+	40+
Outside Reflectivity	Very Low	Zero	Zero

Values are representative of typical production runs and are subject to normal manufacturing tolerances within industry standards. Express Premium Window Films are exclusively available from factory approved Elite Dealer Stores across Australia.

Ply	2 Ply
Thickness	2 Mil
Nano Ceramic	Spectrally Selective
Color	Dye Free
Adhesive	Pressure Sensitive
Scratch Resistant	Yes
Liner	Silicon coated Polyester

Optix Spectrally Selective Tint Selector

Select a shade below to see an indication of how the premium window film will look installed

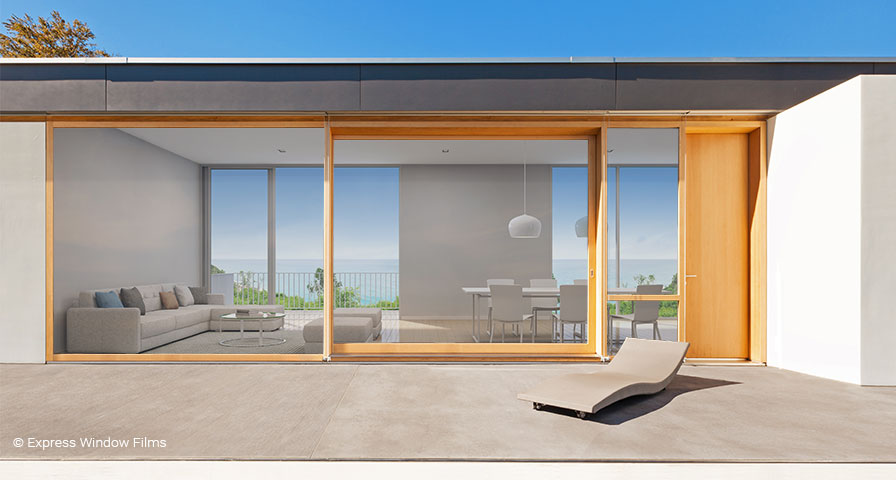

No Tint
Optix 70
Optix 80

Optix Spectrally Selective Features & Benefits

Nano Ceramic Technology

Optix is constructed using precision nano ceramic particles to selectively filter solar energy and achieve very high levels of heat rejection without the harsh mirror look found in conventional window films.

Corrosion Free

Ceramic coating technology is well known for its durability and ensures that Optix will maintain it's appearance in coastal areas and environments. Particularly where large bodies of salt based water exist and all without the need for special edge sealing treatments.

Enhanced Visibility

Optix is made with the industry's finest optical grade polyester combined with precision film coatings that selectively filter the solar spectrum resulting in crystal clear visibility during the day and at night.

Signal Friendly

With the growing reliance of wi-fi and mobile signal for both residential and commercial situations, the Optix range of solar control films allow wi-fi, GPS and mobile signals to pass through without interruption.

Energy Efficient

The solar energy reducing properties of the Extreme range assist in maintaining a comfortable room temperature hence lowering the reliance of high energy consuming cooling appliances and HVAC equipment.

UV Protection 99%+

Ultra Violet Light is the major contributor to premature fading of flooring, furnishings and interior items. Protect your interior and contents with 99%+ UV protection across the whole Optix range.
